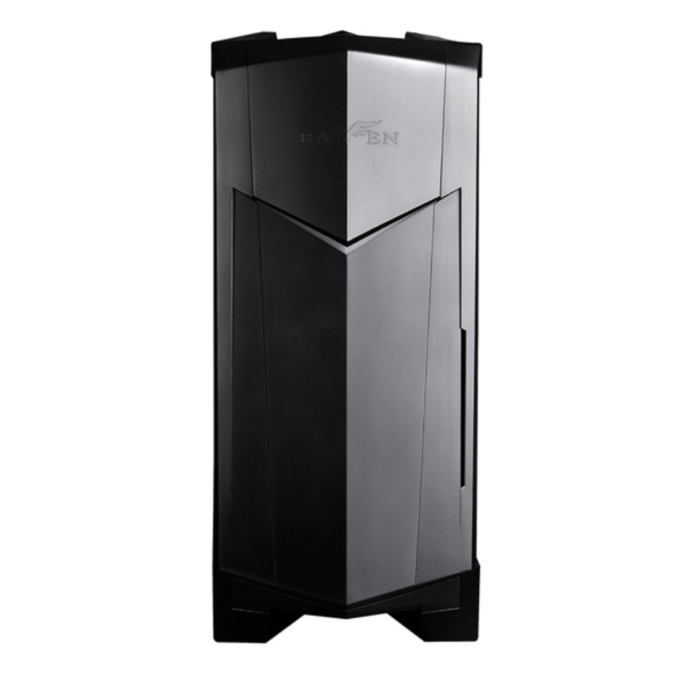

SilverStone Raven RV05 Mid-Tower Case
- Description
- Shipping & Returns
- Reviews
The SilverStone RV05 redefines airflow-focused PC building with its innovative 90-degree rotated motherboard layout. Designed to maximize natural heat convection and reduce dust intake, the RV05 delivers exceptional thermal performance in a sleek, aggressive form. Ideal for high-performance gaming and workstation systems.
Key Specifications:
-
Case Type: Mid-Tower
-
Color: Black (with Raven styling)
-
Material: Steel, Plastic
-
Motherboard Support: ATX / Micro-ATX
-

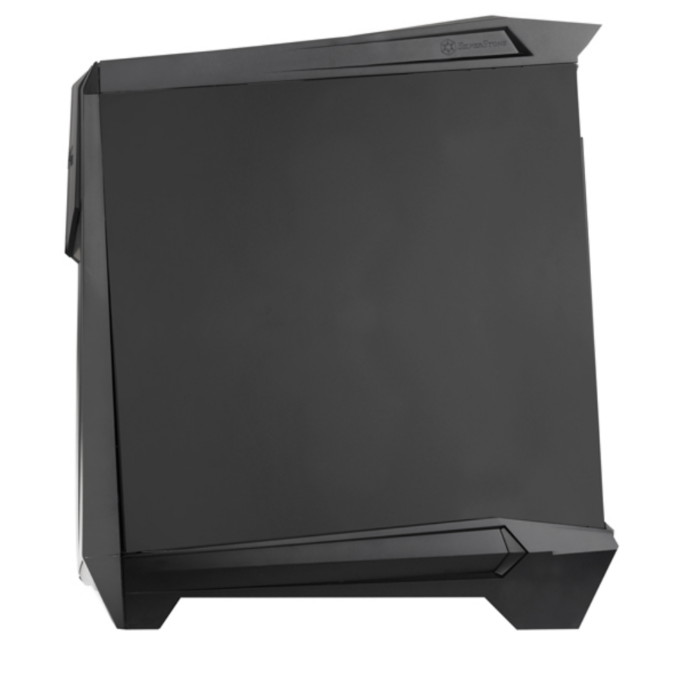

Side Panel: Solid side panels with internal fan filters
-

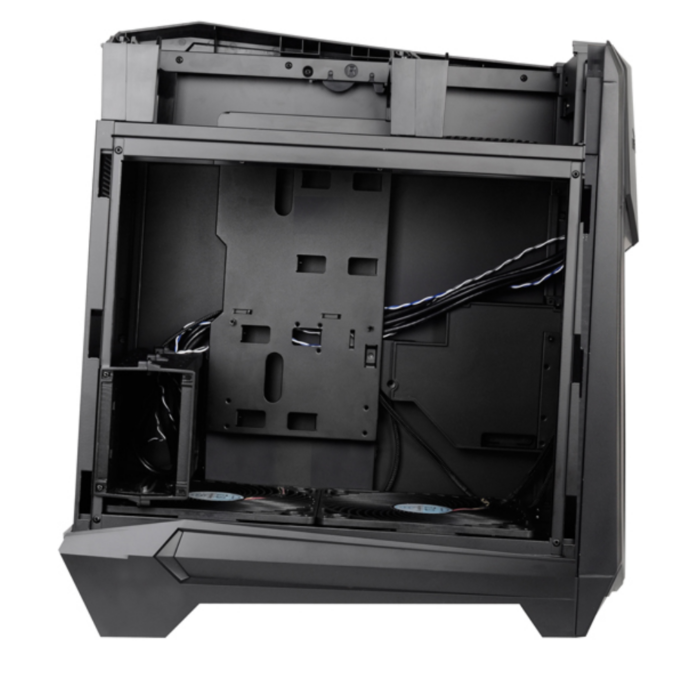

Unique Feature: 90° rotated motherboard orientation for top-exhaust airflow
-
Fan Support:
-
Bottom: 2 x 180mm Air Penetrator fans (pre-installed)
-
Top: Exhaust grille for natural convection airflow
-
-
Radiator Support:
-
Bottom: Up to 280mm (limited clearance with long GPUs)
-
-
Drive Bays:
-
2 x 3.5" HDD (removable cage)
-
2 x 2.5" SSD
-
-
Expansion Slots: 7
-

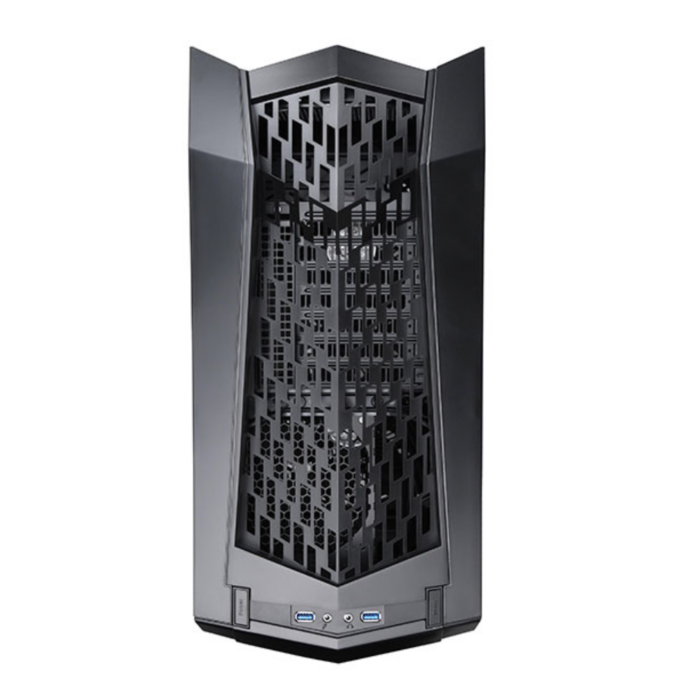

I/O Ports (Top):
-
2 x USB 3.0
-
1 x Audio In / 1 x Audio Out
-
-
Maximum GPU Length: Up to 312mm
-
Maximum CPU Cooler Height: Up to 162mm
-
PSU Support: Bottom-mounted, up to 180mm
-
Dust Filters: Bottom (removable), Positive Pressure Design
-
Cooling Concept:
-
Bottom-to-top airflow using dual 180mm fans
-
Positive air pressure design minimizes dust
-
-
Dimensions: 242 x 529 x 498mm (W x H x D)
-
Weight: Approx. 7.6 kg
Ideal For: Gamers and PC enthusiasts seeking a compact mid-tower with innovative thermal engineering, efficient dust control, and powerful airflow for high-performance builds.
