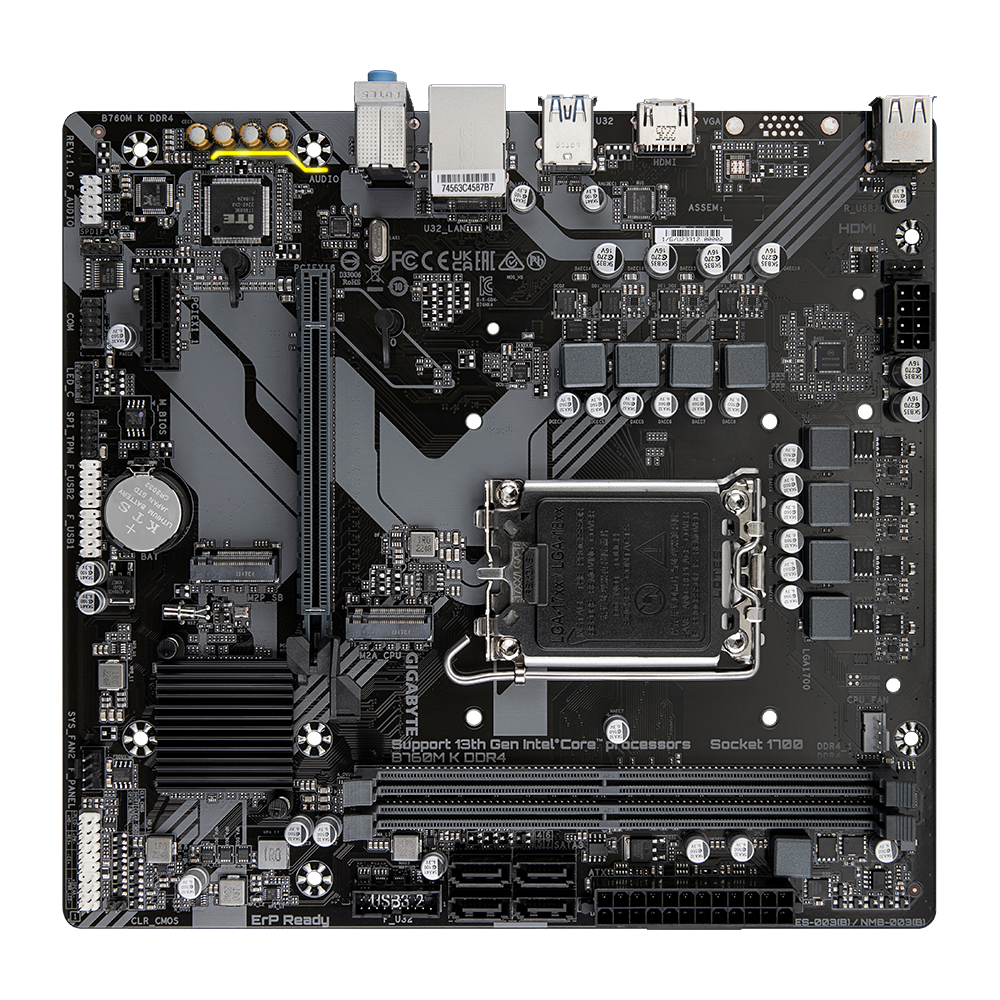

GIGABYTE B760M K DDR4

GIGABYTE B760M K DDR4 is a reliable and performance-focused micro-ATX motherboard designed to support Intel® Core™ 14th, 13th, and 12th Gen processors. Built on the Intel® B760 chipset, this board offers excellent performance with a Hybrid 6+1+1 phase digital VRM design, dual DDR4 memory slots up to 5333MHz (OC), and two ultra-fast PCIe 4.0 M.2 slots for next-gen NVMe SSDs.

Whether you're building a compact gaming system or a productive workstation, the B760M K delivers exceptional value and essential features including EZ-Latch PCIe slot, HDMI 2.1 support, Gigabit LAN, and Smart Fan 6 for advanced cooling control. Perfect for users seeking a high-quality Intel 700-series motherboard with DDR4 memory support.

Key Features

• Supports 14th / 13th / 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors (LGA1700)

• 6+1+1 Hybrid Digital VRM design for stable power delivery

• Dual-channel DDR4 memory support up to 5333MHz (OC)

• 2 x M.2 PCIe 4.0 x4 SSD slots for ultra-fast storage

• EZ-Latch PCIe 4.0 x16 slot for easy GPU installation

• HDMI 2.1 port supporting up to 4K @ 60Hz

• Realtek® GbE LAN for reliable networking

• Smart Fan 6 with multiple sensors and hybrid headers

• Compact micro-ATX form factor (23.0cm x 21.5cm)

• Supports Windows 11 and 10 64-bit

Detailed Specifications

CPU & Chipset

• Socket: LGA1700

• Chipset: Intel® B760 Express

• Supported CPUs: Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold, and Celeron®

Memory

• 2 x DDR4 DIMM slots (up to 64GB total)

• Supported Speeds: Up to DDR4-5333MHz (OC)

• Dual-channel architecture

• ECC (in non-ECC mode) and XMP supported

Graphics Output

• 1 x HDMI 2.1 port (up to 4096x2160 @60Hz)

• HDCP 2.3 support

• Integrated graphics depends on CPU used

Expansion Slots

• 1 x PCIe 4.0 x16 slot (with EZ-Latch quick release)

• 1 x PCIe 3.0 x1 slot

Storage

• 2 x M.2 slots (2280, PCIe 4.0 x4/x2)

• 4 x SATA 6Gb/s ports

• Supports RAID 0, 1, 5, 10 (SATA only)

LAN

• Realtek® GbE LAN (1Gbps)

Audio

• Realtek® Audio CODEC

• 2/4/5.1/7.1-channel High Definition Audio

• S/PDIF Out support

• Configurable audio jacks via software

USB Ports

• Rear I/O:

  • 4 x USB 3.2 Gen 1

  • 2 x USB 2.0

  • 1 x HDMI

  • 1 x RJ-45

  • 3 x Audio jacks

• Internal Headers:

  • 1 x USB 3.2 Gen 1 header (2 ports)

  • 2 x USB 2.0 headers (4 ports)

Cooling & RGB

• 1 x CPU fan header

• 2 x system fan headers

• 1 x RGB LED strip header

• Smart Fan 6 with temperature sensors and fan stop function

Internal I/O Connectors

• 1 x 24-pin ATX power connector

• 1 x 8-pin ATX 12V connector

• 2 x M.2 sockets

• 4 x SATA connectors

• 1 x Front panel header

• 1 x Front panel audio header

• 1 x S/PDIF Out header

• 1 x Trusted Platform Module (TPM) header

• 1 x Serial port header

• 1 x Clear CMOS jumper

BIOS

• AMI UEFI BIOS (128Mbit Flash)

• Supports Q-Flash

Monitoring Features

• Voltage, temperature, fan speed detection

• Water cooling flow rate detection

• Fan speed control and fail warning

• Smart fan curve configuration

Software & Utilities

• GIGABYTE Control Center (GCC)

• Norton® Internet Security (OEM version)

• LAN bandwidth management utility

Operating System Compatibility

• Windows 11 64-bit

• Windows 10 64-bit

Form Factor

• Micro ATX (23.0cm x 21.5cm)
