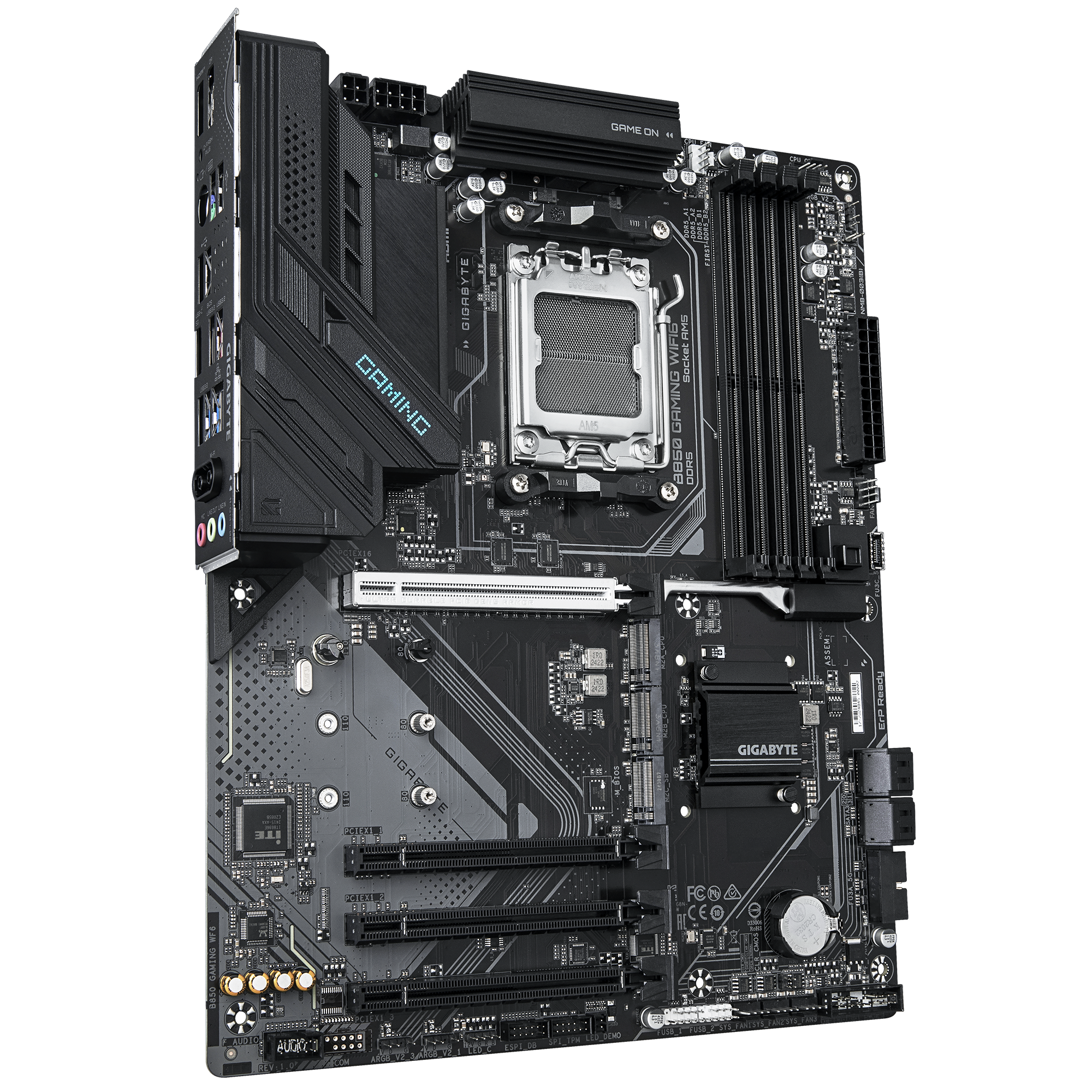

GIGABYTE B850 GAMING WIFI6

GIGABYTE B850 GAMING WIFI6 motherboard is designed for users who want a balance of performance and value, with support for the latest AMD Ryzen processors and next-gen technologies. Below is a breakdown of the key features and specifications:

Key Features:

• AMD Socket AM5: Supports AMD Ryzen™ 9000, 8000, and 7000 Series Processors.

• Memory Support: Supports DDR5 memory with overclocking potential (up to DDR5 8200) and up to 256 GB of system memory (64 GB per DIMM).

• AMD EXPO™ and XMP Support: For easy overclocking and optimized memory profiles.

• Onboard Graphics: Integrated AMD Radeon™ Graphics support, with DisplayPort and HDMI outputs.

• Wi-Fi 6: Provides faster wireless speeds with support for 2.4/5 GHz bands and Bluetooth 5.3.

• Efficient Storage: Multiple M.2 and SATA 6Gb/s connectors for high-speed storage options.

• RAID Support: RAID 0, RAID 1, and RAID 10 support for SATA devices, and RAID 5 for NVMe SSDs (on supported CPUs).

• USB Ports: A wide range of USB ports, including USB Type-C® with Gen 2 and Gen 1 support.

• Easy BIOS Updates: Features like Q-Flash and Q-Flash Plus for easy BIOS updates without a CPU installed.

CPU Support:

• Socket AM5: Supports AMD Ryzen™ 9000, 8000, and 7000 Series processors.

• PCIe Support:

  • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode.

  • Ryzen™ 8000 Series support varies, with Phoenix 1 processors using PCIe 4.0 x8 mode and Phoenix 2 processors using PCIe 4.0 x4 mode.

Memory Support:

• DDR5 Memory: Supports DDR5 speeds from 5200 to 8200 MHz (overclocked), with a total capacity of up to 256 GB.

• Dual Channel Architecture: For enhanced memory performance.

• Memory Profiles: Supports AMD EXPO™ and XMP for easy memory tuning.

Graphics:

• Integrated Graphics Processor:

  • 1 x DisplayPort (3840x2160@144 Hz, with DisplayPort 1.4 and HDR support).

  • 1 x HDMI Port (4096x2160@60 Hz, with HDMI 2.1 and HDR support).

  • Graphics support depends on the CPU used.

Audio:

• Realtek® Audio CODEC: High-definition audio with 2/4/5.1/7.1-channel output.

• Flexible Audio Configuration: Audio jacks can be configured via software for customized audio setups.

Networking:

• Realtek® GbE LAN Chip: Provides 1 Gbps Ethernet connectivity for wired networks.

• Wi-Fi 6 (RTL8851BE): Supports 2.4/5 GHz Wi-Fi bands and Bluetooth 5.3 for fast wireless connectivity.

Expansion Slots:

• 1 x PCIe 5.0 x16 Slot: For high-speed graphics cards (with support for AMD Ryzen™ 9000/7000 Series processors).

• 3 x PCIe 3.0 x16 Slots: Running at x1, for additional expansion options.

• PCIe Slot Compatibility: Ensure to use the correct slots based on the CPU and desired configuration.

Storage:

• M.2 Slots:

  • 1 x PCIe 5.0 x4 slot (for high-speed NVMe SSDs).

  • 2 x PCIe 4.0 x4/x2 slots.

• SATA Connectors: 4 x SATA 6Gb/s for additional storage devices.

• RAID Support: RAID 0, 1, 5, and 10 for NVMe and SATA devices, depending on the processor.

USB Ports:

• USB 3.2 Gen 2 Type-A Ports: 2 x red ports for high-speed data transfer.

• USB Type-C®: 1 x USB 3.2 Gen 1 Type-C port on the back panel and internal header support.

• USB 2.0 Ports: Multiple USB 2.0/1.1 ports available on the back panel and through internal headers.

Internal I/O Connectors:

• Power Connectors: 24-pin ATX main power, 8-pin and 4-pin ATX 12V power connectors.

• Fan Headers: 1 x CPU fan header, 1 x CPU fan/water pump header, 3 x system fan headers, and more for efficient cooling setups.

• RGB Headers: 3 x addressable RGB Gen2 LED strip headers and 1 x RGB LED strip header.

Back Panel Connectors:

• Video Outputs: DisplayPort and HDMI for video output.

• USB Ports: A mix of USB Type-C®, USB 3.2 Gen 2 Type-A, and USB 2.0/1.1 ports.

• Network: 1 x RJ-45 port for wired networking.

• Audio Jacks: 3 x audio jacks for surround sound.

BIOS and Software:

• Q-Flash & Q-Flash Plus: For easy BIOS updates with or without a CPU installed.

• Smart Backup: For secure system backups.

• Bundled Software: Includes Norton® Internet Security (OEM version) and LAN bandwidth management software.

• GIGABYTE Control Center: Provides additional software tools for motherboard management.

Operating System Support:

• Windows 10 64-bit and Windows 11 64-bit.

Form Factor:

• ATX Form Factor: 30.5 cm x 24.4 cm, providing a standard layout for compatibility with most PC cases.
