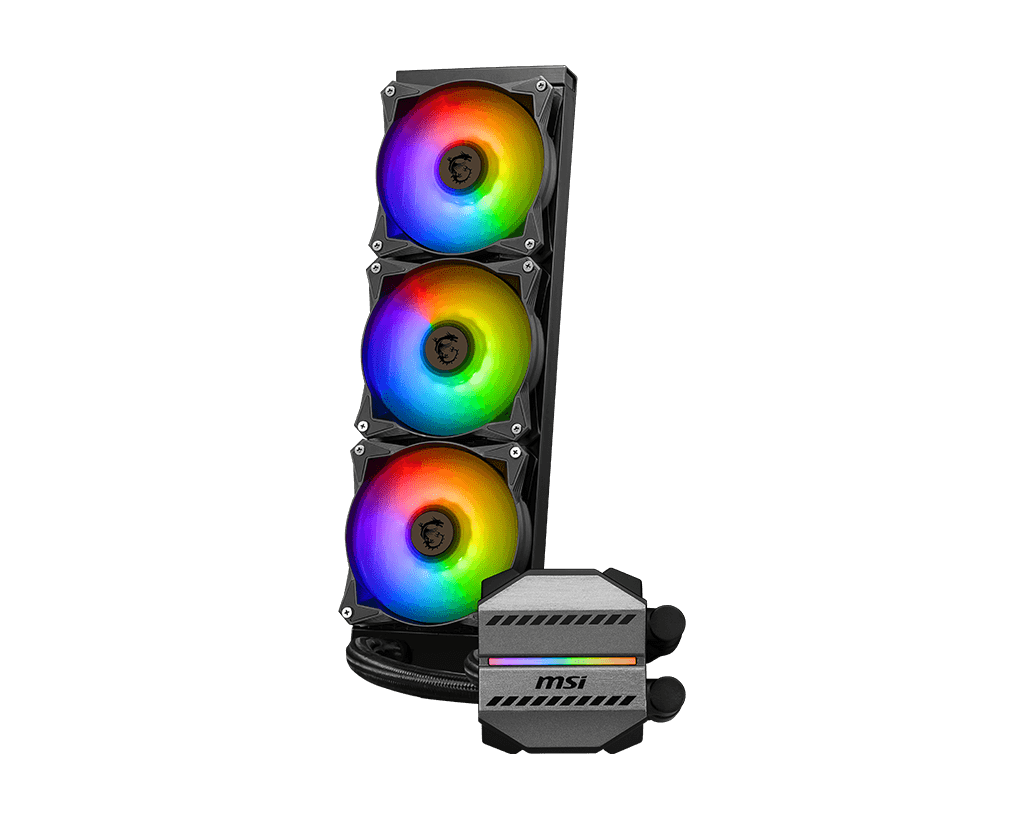

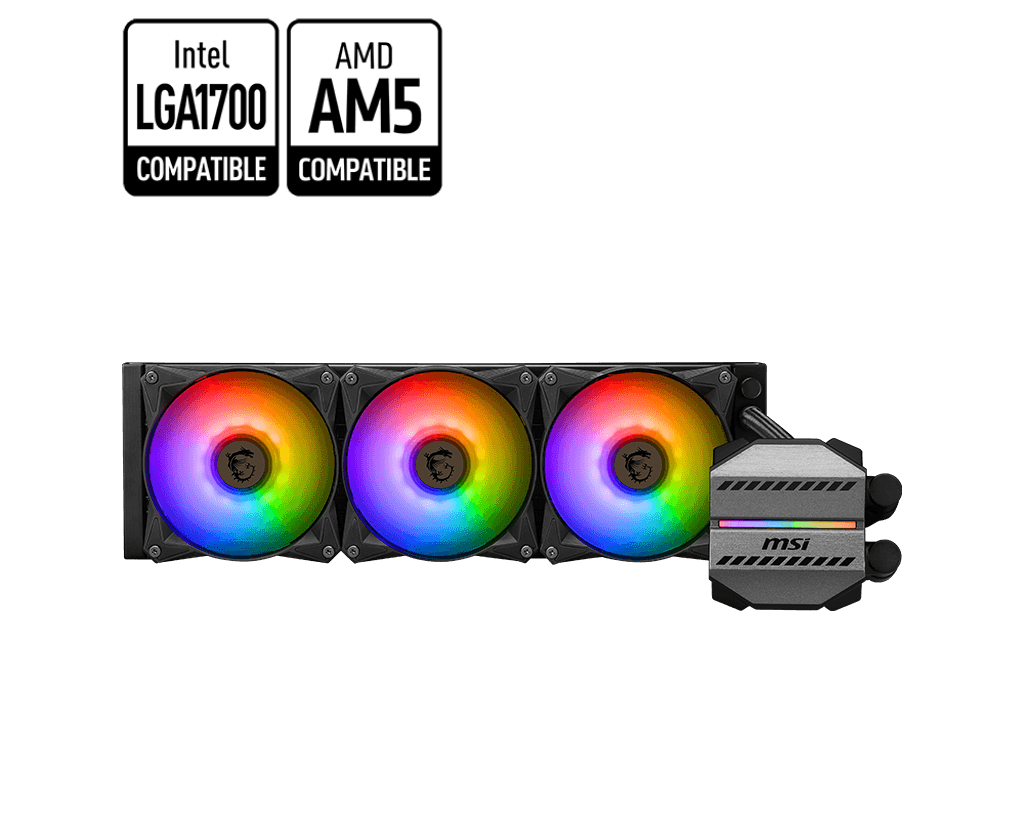

MAG CORELIQUID M360

Cooling System: AIO (All-in-One)

Specifications

• Radiator Size: 360 mm
• Radiator Dimensions: 397 x 120 x 27 mm (15.63 x 4.7 x 1.06 inches)
• Radiator Material: Aluminum

Radiator Design

• Construction:
  • Three layers of netted plastic tubing.
  • Reinforced mesh exterior for added durability.
• Heat Dissipation:
  • Features a 12-pathway design to efficiently dissipate heat.

Cold Plate

• Material: Curved copper plate ensures full coverage of the CPU.
• Performance: Optimizes heat transfer and rapid heat dissipation.

Socket Compatibility

• Intel:
  • LGA 1150
  • LGA 1151
  • LGA 1155
  • LGA 1156
  • LGA 1200
  • LGA 1700
  • LGA 2011/2011-3/2066
• AMD:
  • AM5
  • AM4
  • TR4

Fans

• Number of Fans: 3 x 120 mm fans with ARGB lighting
• Fan Dimensions: 120 x 120 x 25 mm (4.7 x 4.7 x 0.98 inches)
• Fan Air Flow: 21.63 ~ 78.73 CFM
• Fan Bearing: Two Ball Bearing
• Fan Life Expectancy: 70,000 hours
• Fan Rated Current: 0.35 A
• Fan Power Consumption: 4.2 W
• PWM Mode: Yes
• Cable Length (PWM Cable): 350 mm (13.78 inches)
• Fan Lighting: ARGB

Pump Specifications

• Life Expectancy: 100,000 hours
• Noise Level: 20 dBA
• Rated Current: 0.38 A
• Power Consumption: 4.56 W
• Speed: 3100 RPM ± 10%
• Connector: 3 Pin
• Block Dimensions: 67.26 x 59.95 x 55.9 mm

This cooler is engineered for high efficiency and durability, making it ideal for demanding applications and gaming setups. If you have any specific questions or need further comparisons
