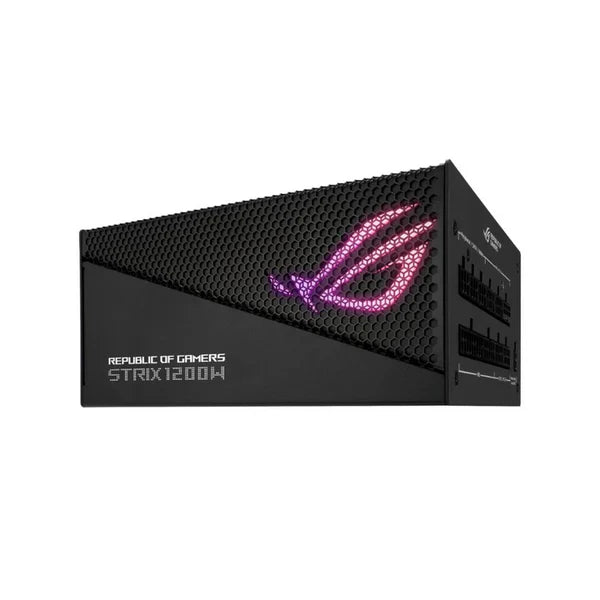

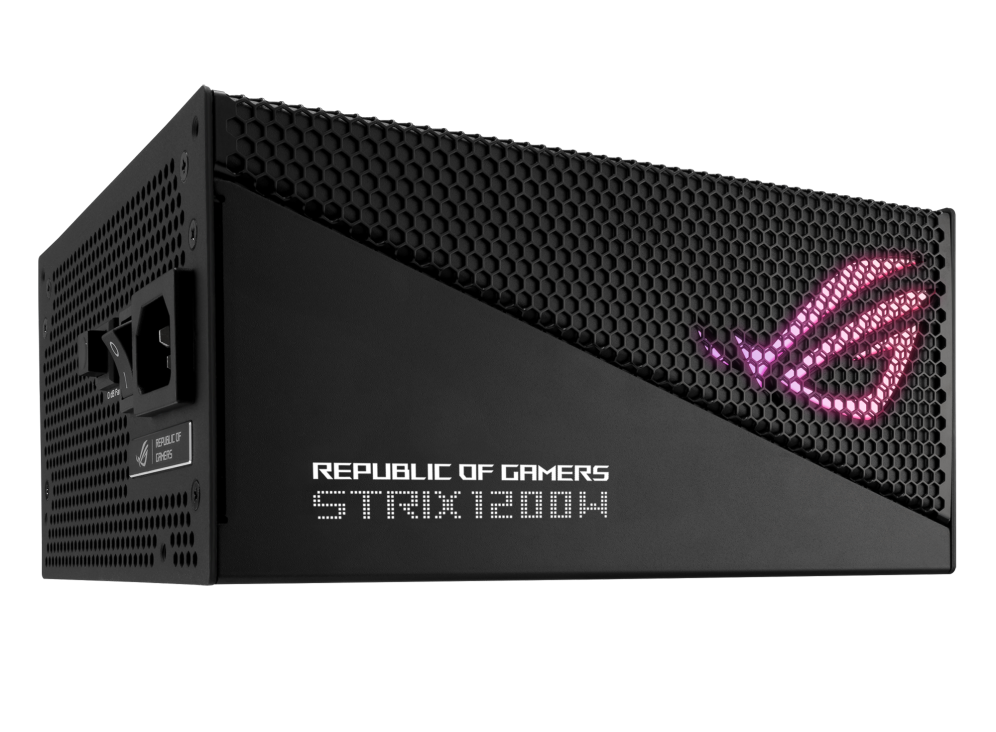

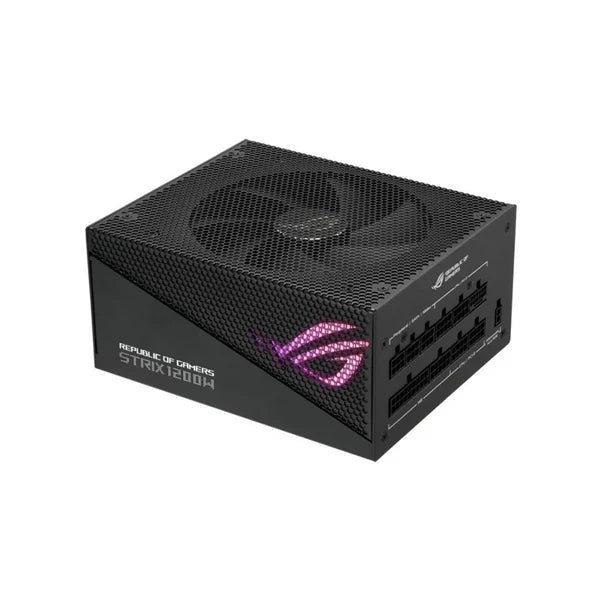

ROG STRIX PSU 1200W Gold Aura Edition

ROG STRIX PSU 1200W Gold Aura Edition is a high-performance power supply unit designed for gaming and high-demand computing setups. Here’s a breakdown of its key features:

Specifications

• Form Factor: ATX12V, compliant with ATX 3.0 standards.
• Power Output: 1200W total, with a maximum load of 100A on the +12V rail.
• Efficiency: 80 Plus Gold certified, ensuring high efficiency and lower energy costs.
• MTBF: Over 120,000 hours at 25°C, indicating reliability and durability.
• Protection Features: Includes OPP (Over Power Protection), OVP (Over Voltage Protection), UVP (Under Voltage Protection), SCP (Short Circuit Protection), OCP (Over Current Protection), and OTP (Over Temperature Protection).
• Dimensions: 180 x 150 x 86 mm, fitting standard ATX cases.
• Weight: 3.23 kg.

Input and Output

• AC Input Range: 100-240Vac.
• DC Output Voltage:
  • +3.3V: 22A (120W)
  • +5V: 22A (120W)
  • +12V: 100A (1200W)
  • -12V: 0.3A (3.6W)
  • +5Vsb: 3A (15W)

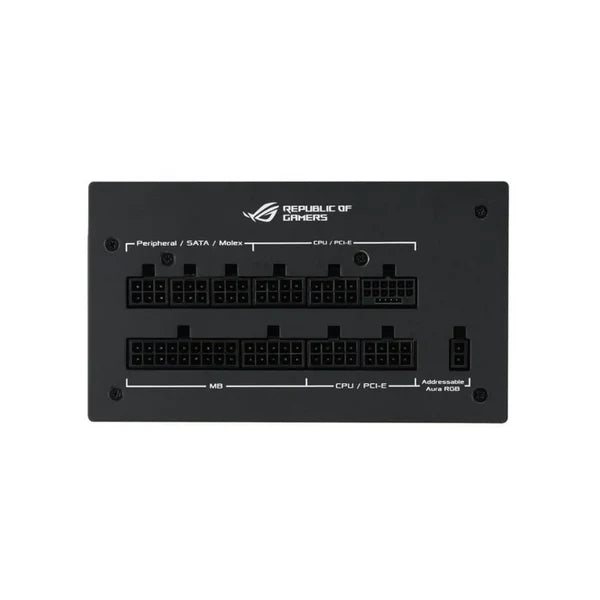

Cable Connectors

• Motherboard: 24/20-pin x 1
• CPU: 4+4-pin x 2
• PCI-E:
  • 16-pin x 1 (Gen 5)
  • 8-pin x 4
• SATA: x 5
• Peripheral: x 4

Package Contents

• Power Cord x 1
• Motherboard Power Cable x 1 (600mm)
• CPU Cables x 2 (650mm)
• PCI-E Gen 5 16-pin Cable x 1 (675mm)
• PCI-E 1-to-1 Cables x 2 (675mm)
• PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
• SATA 1-to-2 Cable x 1 (400+120mm)
• SATA 1-to-3 Cable x 1 (400+120+120mm)
• Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
• Addressable RGB Cable x 1 (800mm)
• User Manual x 1

Additional Features

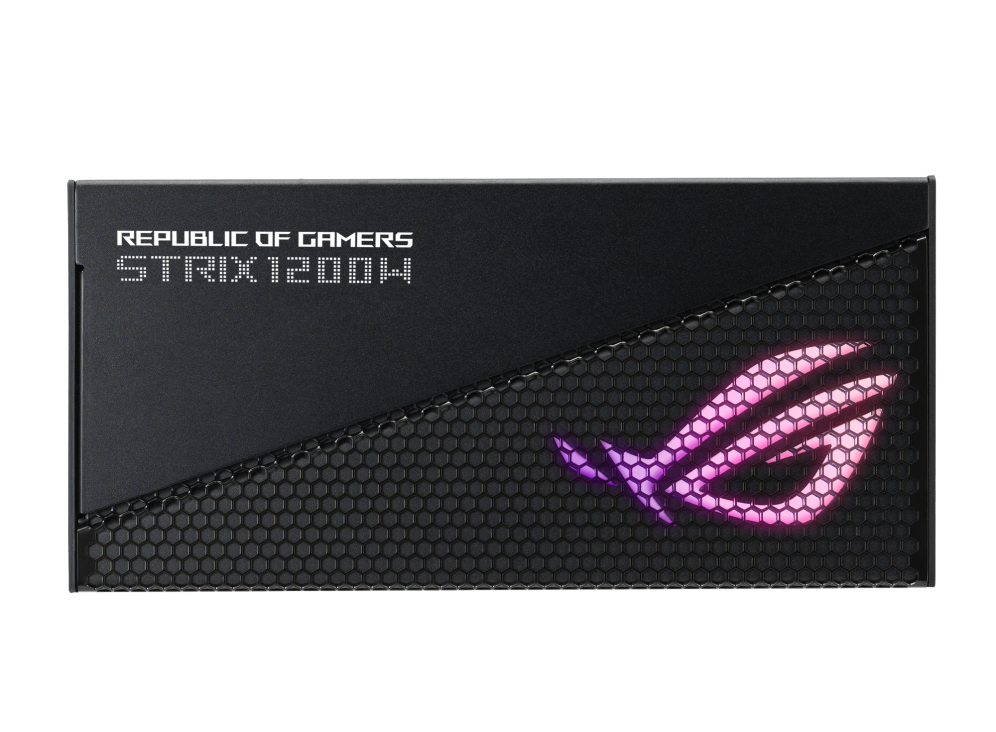

• AURA SYNC: Supports addressable RGB lighting for customization and synchronization with other ASUS components.
• Cybenetics Noise Level Certification: Rated A+, indicating low noise levels during operation.

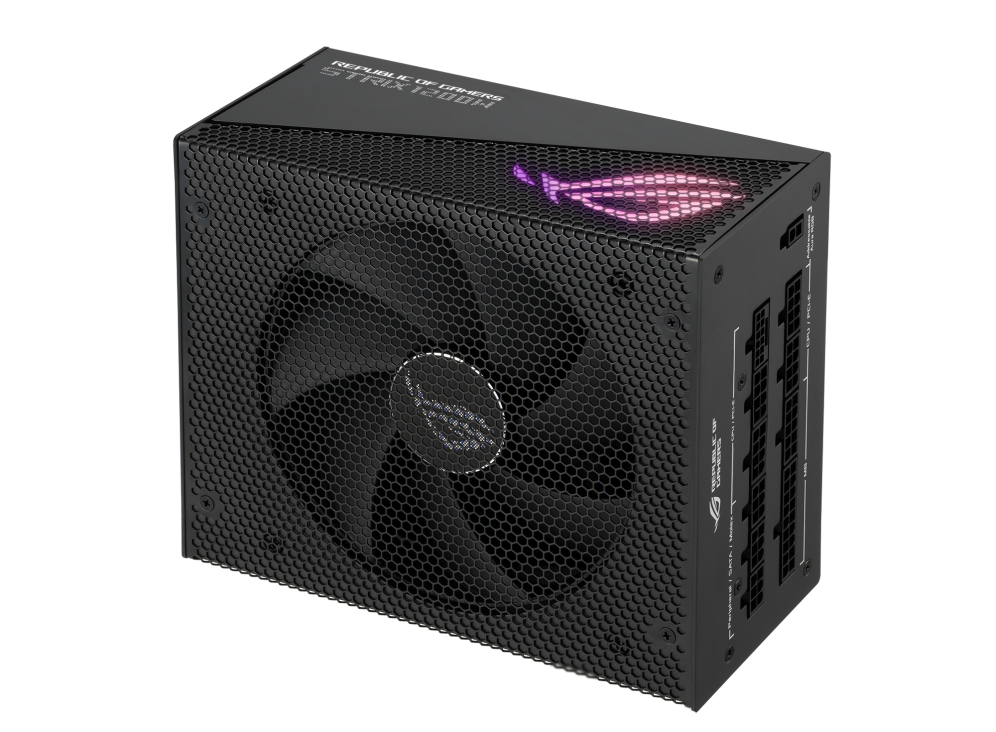

• 0dB Technology: The fan can turn off completely under low load conditions for silent operation.

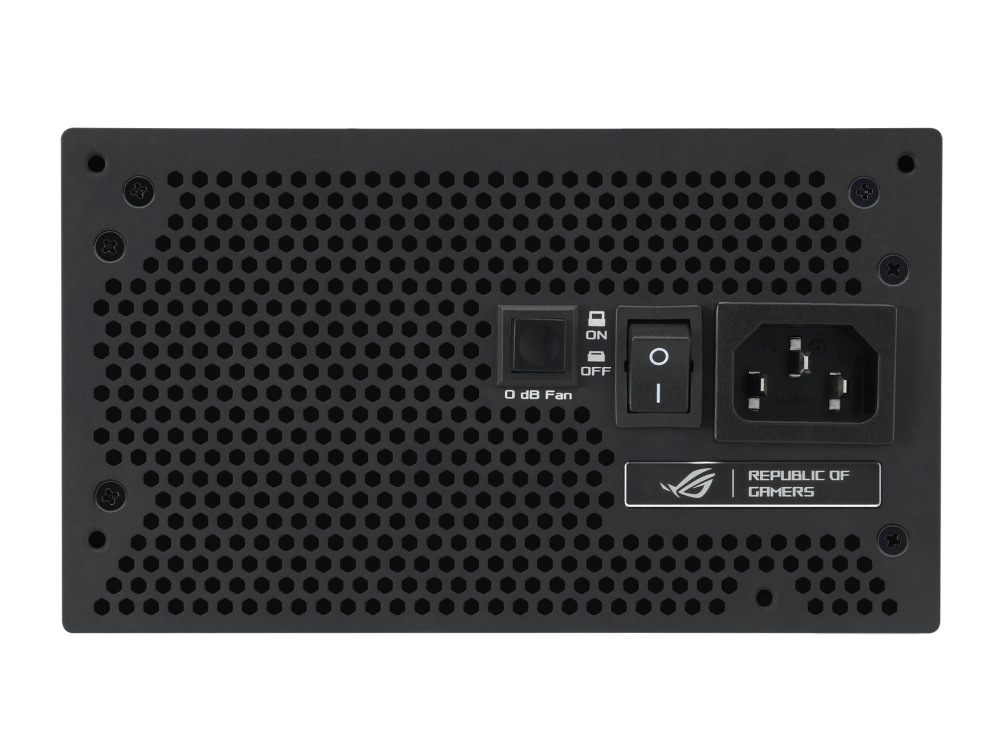

• 0dB Fan Button: Allows users to toggle fan operation based on load.

Summary

The ROG STRIX PSU 1200W Gold Aura Edition is a robust and efficient power supply option, ideal for gamers and enthusiasts looking to power high-performance systems while enjoying features like customizable RGB lighting and silent operation.
